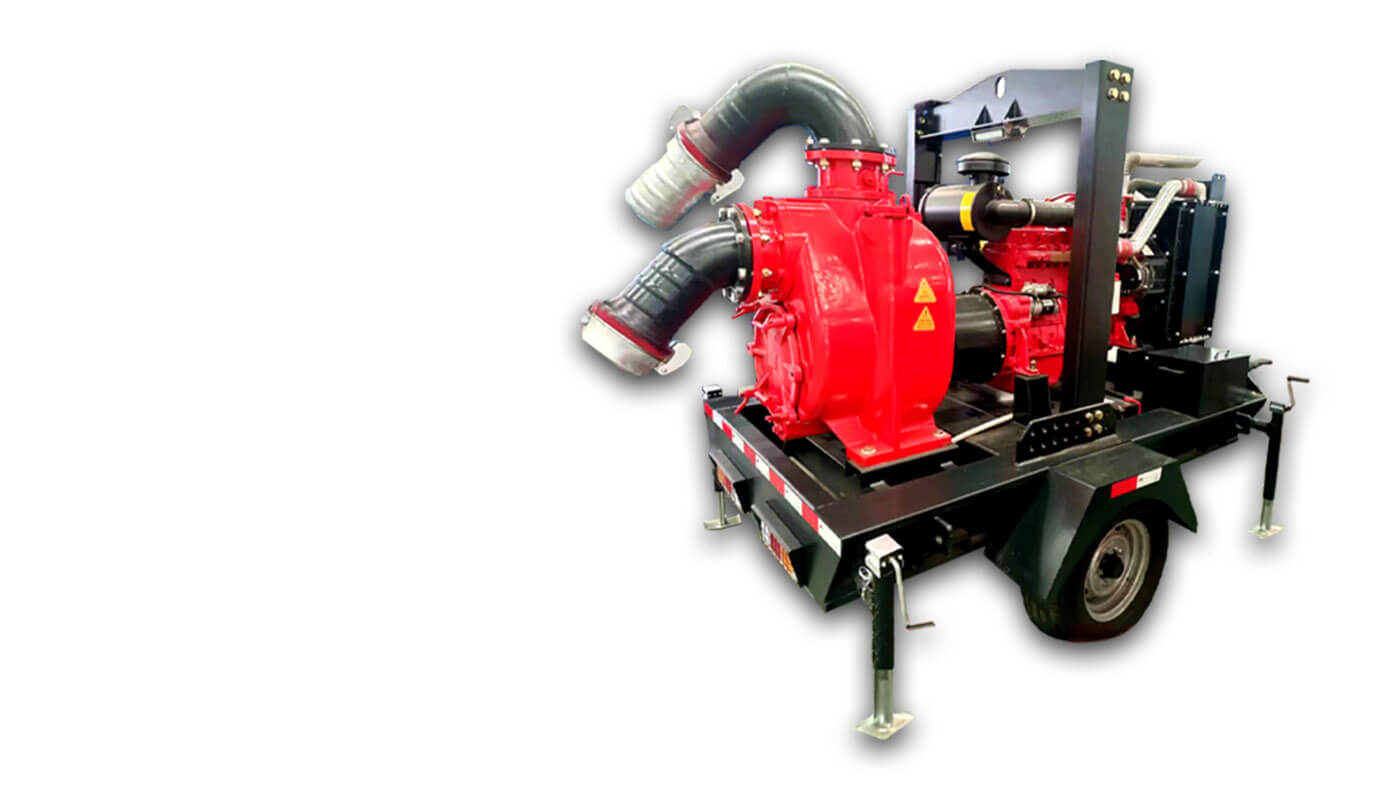

Diesel Pump Sets
Engine-Driven Water Pumps

Elitech Power supplies diesel engine-driven pump sets for water transfer, dewatering, irrigation, flood control and fire fighting applications. Available in centrifugal, self-priming, submersible and fire pump configurations with Cummins, Perkins, Yanmar and Isuzu engines. CE certified, factory direct wholesale pricing.

Get Pump Set Quote

WhatsApp Now

Browse All Models

4 Types

Centrifugal · Self-Prime · Sub · Fire

Cummins

Perkins · Yanmar · Isuzu

Certified

60+

Countries Served

Pump Types

Diesel Pump Set Configurations

Four pump configurations to match your application. Specify pump type, flow rate, head pressure and fluid type when requesting a quote.

Pump Sets %custom_field_Attribute 2 value(s)%

Centrifugal Pump Sets

High-flow water transfer for irrigation, municipal water supply and industrial processes. Available in end-suction and multistage configurations. Flow rates from 10 m³/hr to 2,000 m³/hr. Suitable for clean water and mildly contaminated liquids.

Self-Priming Pump Sets

Dry-priming capability for dewatering, construction site drainage and flood control. Can prime from dry without manual filling. Handles water with suspended solids and debris. Flow rates 20–500 m³/hr. Ideal for site dewatering and emergency flood response.

Submersible Pump Sets

Diesel-powered submersible pumps for deep well, borehole and underground drainage applications. Suitable where surface-mounted pumps cannot reach. Available for clean water and sewage applications. Head up to 200m.

Fire Fighting Pump Sets

Dedicated diesel fire pump sets compliant with NFPA 20 and EN 12845. Automatic start on pressure drop, weekly self-test, UL/FM listed pump options. 500–3,000 L/min flow rates. Supplied with listed diesel engine driver and controller panel.

Diesel Pump Set Specifications

Pump Types	Centrifugal · Self-priming · Submersible · Fire fighting
Flow Rate	10 m³/hr – 2,000 m³/hr (application dependent)
Head Pressure	Up to 200m (multistage) · Up to 80m (single stage centrifugal)
Engine Options	Cummins / Perkins / Yanmar / Isuzu / SDEC
Engine Power	5 kW – 300 kW (matched to pump duty)
Pump Material	Cast iron / Stainless steel 316 / Bronze — specify liquid type
Mounting	Skid-mounted · Trailer-mounted · Container-mounted
Control Panel	Manual start · Auto-start · AMF · NFPA 20 fire pump controller
Liquid Types	Clean water · Seawater · Sewage · Slurry · Chemical (specify)
Certifications	CE · ISO 9001 · NFPA 20 (fire pumps) · EN 12845 (fire pumps)
Warranty	12 months

Common Applications

Mining Dewatering

High-volume dewatering for open-pit and underground mines — self-priming diesel pump sets with solids handling capability.

Irrigation

Agricultural irrigation pump sets for large-scale field irrigation, canal transfer and reservoir filling. High flow, low head centrifugal units.

Fire Protection

Dedicated diesel fire pump sets for industrial facilities, warehouses, hotels and commercial buildings compliant with NFPA 20 and EN 12845.

Construction Sites

Site dewatering, foundation drainage and temporary water supply. Trailer-mounted for easy repositioning across large construction sites.

Municipal Water Supply

Booster pump sets for rural water supply schemes, emergency municipal backup and water treatment plant raw water intake.

Flood Control

Emergency flood response pump sets — high-flow self-priming units for rapid deployment to flood-affected areas.

Diesel Pump Set FAQ

What information do I need to provide to get a pump set quote?

To size a pump set correctly we need: flow rate required (m³/hr or L/min), total dynamic head (m), suction lift (m), liquid type (clean water, seawater, sewage, slurry), solid content if any, operating altitude above sea level, and whether the pump needs to be trailer-mounted or skid-mounted. We will then recommend the correct pump model and engine combination.

Can you supply diesel fire pump sets compliant with NFPA 20?

Yes. We supply diesel fire pump sets designed to NFPA 20 (Standard for the Installation of Stationary Pumps for Fire Protection) and EN 12845. These include a listed diesel engine, listed fire pump, weekly self-test controller, automatic start on pressure drop, and battery supervision. We supply the fire pump set as a packaged skid — your local contractor handles installation and commissioning to the relevant standard.

What is the difference between a centrifugal and a self-priming pump?

A standard centrifugal pump requires the suction line and pump casing to be filled with liquid (primed) before it can operate — it cannot pump air. A self-priming centrifugal pump has an internal recirculation chamber that allows it to evacuate air from the suction line and prime itself from dry. Self-priming pumps are essential for dewatering applications where the pump is positioned above the water surface and the suction line may be empty when the pump starts.
